Formwork plywood serves as the backbone of modern concrete construction, creating temporary moulds that shape wet concrete into permanent structures. This specialized building material transforms architectural designs into reality, from residential foundations to commercial high-rises.

The significance of Formwork plywood in concrete molds cannot be overstated. It provides the structural support needed during the critical curing phase whilst delivering smooth, professional surface finishes. Builders rely on its strength, moisture resistance, and reusability to maintain project timelines and budgets.

This article addresses essential questions about formwork plywood:

• What makes formwork plywood different from standard plywood?
• Why do construction professionals prefer it over alternatives?
• How is it graded and sized for various applications?
• What are the proper usage techniques and maintenance practices?

Understanding these fundamentals helps contractors, builders, and project managers make informed decisions about material selection and application methods in concrete construction projects.

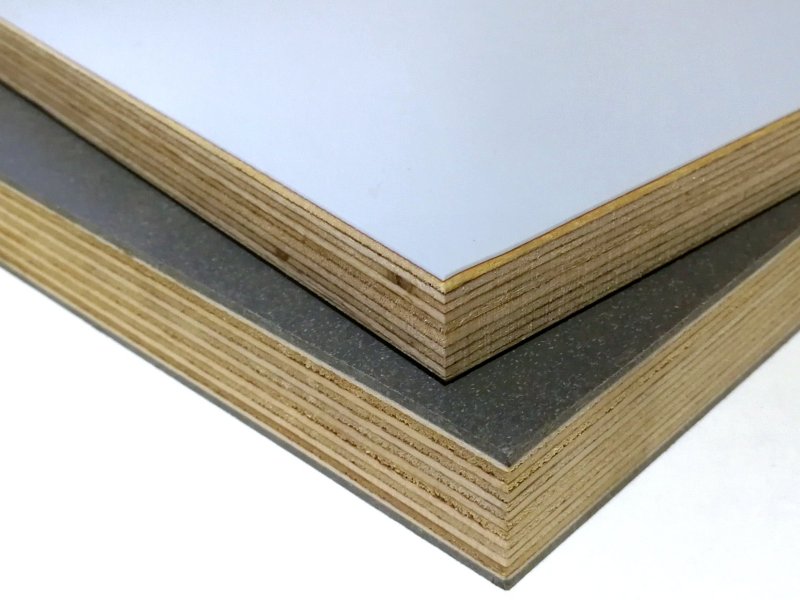

What Is Formwork Plywood?

Formwork plywood is a specialised plywood engineered specifically to create temporary moulds that hold and shape wet concrete during construction projects. Unlike standard plywood used in general carpentry, this material undergoes enhanced manufacturing processes to withstand the demanding conditions of concrete work, including exposure to moisture, alkaline chemicals, and substantial structural loads.

Key Features of Formwork Plywood

The defining feature of quality formwork plywood is its phenolic resin coating, a protective film bonded to one or both faces of the panel. This coating creates a waterproof barrier that prevents concrete from adhering to the surface whilst protecting the wood core from deterioration. The resin treatment also provides exceptional moisture resistance, allowing the plywood to maintain its integrity even when saturated during the concrete pouring and curing process. This chemical barrier proves essential when dealing with the alkaline nature of wet concrete, which would otherwise degrade untreated wood fibres rapidly.

Structural stability ranks as another critical characteristic of formwork plywood. The material must maintain precise dimensions and resist warping, bending, or twisting under the considerable weight of wet concrete—which can exceed 2,400 kilograms per cubic metre. Manufacturers achieve this stability through:

1. Cross-laminated veneer construction that distributes stress evenly across the panel
2. High-density core materials selected for consistent strength properties
3. Controlled moisture content during production to minimise expansion and contraction
4. Precision thickness tolerances that ensure uniform load distribution

The plywood’s structural soundness extends beyond mere load-bearing capacity. It must resist deflection that could create surface irregularities in the finished concrete, maintain sharp edges for clean architectural lines, and endure repeated assembly and disassembly cycles without compromising dimensional accuracy. This combination of protective coating and robust construction makes formwork plywood fundamentally different from conventional plywood products.

Interestingly, recent studies have revealed that incorporating certain additives into the production process can further enhance the performance characteristics of formwork plywood.

Why Is Formwork Plywood Preferred in Concrete Construction?

Formwork plywood is the preferred choice for concrete construction projects due to its numerous advantages over other materials. Here are some reasons why it is widely used:

1. Cost-Effectiveness

Formwork plywood is highly cost-effective because it can be reused multiple times for different pours. With proper maintenance, a single set of high-quality formwork panels can be used for 20 to 50 applications. This significantly reduces material costs compared to single-use alternatives.

2. Lightweight and Easy to Handle

The lightweight nature of formwork plywood makes it easy for workers to handle and position the panels manually without the need for heavy machinery. This is in contrast to steel forms, which require cranes or multiple operators for installation. As a result, installation times are accelerated and labour costs are reduced, especially in projects with complex shapes or limited access.

3. Superior Surface Finish

Contractors prefer plywood formwork because it provides a smooth surface finish on the cured concrete. The phenolic coating on the plywood transfers directly to the concrete, resulting in clean and professional surfaces that often require minimal post-pour treatment. This eliminates the need for expensive grinding, patching, or additional finishing work that rough formwork materials would require.

4. Durability and Stability

Formwork plywood is designed to withstand the physical demands of concrete pressure, temperature changes during curing, and exposure to alkaline concrete mixtures. Its engineered construction ensures that it maintains its shape and size even under these challenging conditions, preventing any warping or deformation that could compromise the final concrete structure.

5. Environmental Sustainability

Material selection decisions in construction are increasingly influenced by environmental considerations. Plywood sourced from certified sustainable forests offers a renewable alternative to plastic forms made from petroleum or steel production that requires high energy consumption. At the end of its life cycle, plywood naturally biodegrades and many panels can be repurposed into temporary structures or recycled into wood products. This eco-friendly profile aligns with green building certifications and corporate sustainability commitments while still meeting the performance standards required in concrete construction.

How Is Formwork Plywood Graded and Sized for Use?

Formwork plywood is manufactured in standardized dimensions and graded according to quality standards that determine its suitability for specific construction applications. The standard panel size measures 1220 x 2440 mm (4 x 8 feet), which provides optimal coverage whilst remaining manageable for site handling and transport.

Plywood thickness varies based on the structural demands of each concrete element:

• 12mm panels suit light-duty applications such as thin slabs and non-load-bearing walls
• 15mm to 18mm panels accommodate medium-duty requirements including standard residential walls and floors
• 21mm panels handle heavy-duty structural loads for beams, columns, and thick industrial slabs

The thicker the panel, the greater its resistance to deflection under the weight and pressure of wet concrete.

Grade classification directly impacts performance and reuse potential. A-grade formwork plywood features minimal surface defects, superior bonding between layers, and consistent thickness throughout. This premium quality delivers the smoothest concrete finishes and withstands 20-30+ pours with proper maintenance. B-grade and C-grade options contain more knots, patches, and slight imperfections, making them economical choices for temporary structures, rough finishes, or projects requiring fewer reuses.

Load requirements dictate which combination of thickness and grade to specify. High-rise columns bearing significant hydrostatic pressure demand 21mm A-grade panels, whilst ground-level garden walls function adequately with 12mm B-grade material. Contractors calculate the expected concrete pressure per square metre to select appropriate specifications that prevent bulging or failure during the pour.

Where Is Formwork Plywood Used in Concrete Projects?

Formwork plywood is an essential component in almost every concrete structure, both in residential construction and commercial construction. Its flexibility allows builders to create accurate moulds for various concrete elements such as walls, beams, columns, floor slabs, roof decks, foundations, and basement walls. Click here to learn about LVL Formwork Timber how to calculate beam spacing and load capacity.

Uses of Formwork Plywood in Residential Construction

In residential projects, formwork plywood is primarily used for:

1. Building foundation walls and footings that provide structural support
2. Constructing suspended concrete slabs between different floors
3. Creating complex angled forms for staircase construction
4. Adding decorative architectural features like curved walls or custom mouldings

Uses of Formwork Plywood in Commercial Buildings

Commercial buildings require formwork plywood for larger applications, including:

1. Supporting multiple storeys with high-rise columns
2. Transferring loads across open floor plans with wide-span beams
3. Constructing tall, continuous forms for lift shafts and core walls
4. Building car park ramps and multi-level parking structures

Applications of Formwork Plywood in Industrial Facilities

In industrial settings, formwork plywood is used for heavy-duty purposes such as:

• Creating foundations for machinery
• Constructing containment walls for chemical storage
• Building reinforced concrete floors that can bear significant equipment loads

The versatility of formwork plywood makes it suitable for both simple rectangular shapes and complex architectural details that require custom cutting and shaping on-site.

How Is Formwork Plywood Properly Used During Concrete Construction?

Successful formwork installation begins with careful layout planning to determine panel positioning, support requirements, and joint locations before any assembly starts. Contractors measure the concrete element dimensions, calculate the number of plywood sheets needed, and mark cutting lines for custom shapes or openings.

The assembly techniques follow a systematic approach:

1. Prepare the base – Establish a level support structure using timber joists, steel props, or scaffolding that can bear the combined weight of wet concrete and formwork
2. Position panels – Place plywood sheets against the support framework, ensuring tight joints between panels to prevent concrete leakage
3. Secure connections – Fix panels using compatible fasteners such as form ties, clamps, or screws that penetrate sufficiently without damaging the phenolic coating
4. Install bracing – Add diagonal braces and walers to prevent bulging or movement when concrete exerts lateral pressure
5. Apply release agent – Coat the plywood surface with form oil or release compound to facilitate easy removal after curing
6. Inspect alignment – Check vertical and horizontal alignment using spirit levels and plumb lines before concrete placement

Proper spacing of supports typically ranges from 300mm to 600mm depending on plywood thickness and expected concrete pressure. Thicker panels (18-21mm) require fewer intermediate supports than thinner variants (12-15mm).

What Are the Best Practices for Maintaining Formwork Plywood?

Proper maintenance directly impacts the reusability and lifespan of formwork plywood panels. Cleaning formwork immediately after stripping prevents concrete residue from hardening on the surface, which can damage the phenolic coating and reduce the number of pours the plywood can handle.

Essential cleaning formwork steps include:

• Scrape off wet concrete residue with plastic or wooden tools to avoid scratching the resin surface
• Wash panels with water and a soft brush whilst the concrete is still fresh
• Apply a release agent before the next use to facilitate easier stripping and protect the coating
• Avoid using metal scrapers or harsh chemicals that degrade the phenolic film

Storage tips for extending service life:

• Stack panels flat on level ground with spacers between each sheet to allow air circulation
• Keep plywood in a dry, covered area away from direct sunlight and rain exposure
• Rotate stock regularly to ensure even usage across all panels
• Store vertically only for short periods to prevent warping

Regular inspection identifies cracks, delamination, or edge damage before they compromise structural integrity. Damaged panels should be repaired with waterproof fillers or retired from heavy-duty applications. Applying additional sealant to cut edges prevents moisture ingress, particularly important for panels used in wet conditions or extended curing periods.

Conclusion

Formwork plywood is an essential material for creating durable concrete structures in residential, commercial, and industrial projects. Its unique combination of strength, moisture resistance, and reusability makes it an indispensable choice for contractors seeking efficient construction methods.

The material excels at balancing three critical factors:

• Performance: Phenolic resin coatings and dimensional stability ensure reliable results pour after pour
• Cost-effectiveness: Multiple reuses significantly reduce per-project expenses compared to single-use alternatives
• Environmental sustainability: Responsibly sourced plywood offers a renewable option with lower embodied energy than steel or plastic formwork

Understanding what is formwork plywood and how is it used in concrete construction empowers builders to make informed decisions that impact project timelines, budgets, and environmental footprints. Proper selection, handling, and maintenance of formwork plywood directly translates to superior concrete finishes and extended material lifespan.

Ready to optimise your next concrete project? Source high-quality formwork plywood from certified suppliers and implement the best practices outlined in this guide to maximise your investment whilst supporting sustainable building practices.

FAQs on Formwork Plywood in Concrete Construction
